DA-IZ-1200 Sliding Gate Opener

$1,518.00

The DA-IZ-1200 Sliding Gate Opener is a 370W motorized solution for automated sliding gates. It features electronic soft-start technology, an adjustable auto-closing function, and a manual release key for power outages, making it ideal for reliable and smooth operation in residential or light commercial settings. Designed for easy installation and low maintenance, it works efficiently in a temperature range of -20ºC to 44ºC.

Features

  • 370W Motor: Provides smooth and efficient operation with a rotational speed of 1400 RPM.

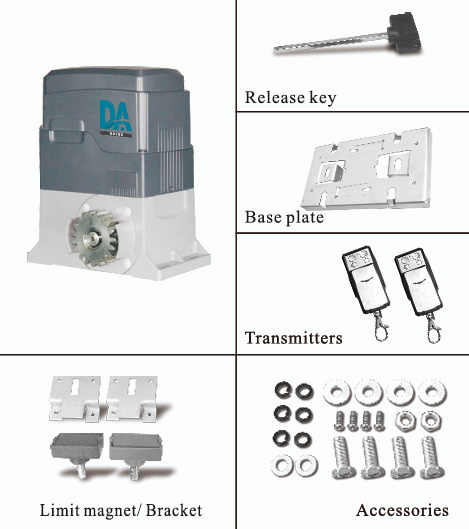

  • Manual Release Key: Allows manual operation during power outages.
  • Electronic Soft-Start: Ensures smooth gate movement without jerks.
  • Auto-Closing Feature: Automatically closes the gate with adjustable time delay.
  • Easy Installation and Maintenance: Simple to set up and maintain, designed for long-term use.
  • Wide Temperature Range: Operates in temperatures from -20ºC to 44ºC, suitable for various climates.

Warranty & Returns

We offer a 2-year warranty from the date of purchase. This warranty covers any faulty in material under normal use during the warranty period. It does not cover damage resulting from misuse, abuse, accidents, unauthorized repairs, improper installation, or normal wear and tear.
Returns are accepted only for items that are faulty, non-defective items are not eligible for return.

Please contact us for more details [click here]

Installation

  • Site Preparation:
    • Ensure the sliding gate track is properly installed and aligned. Verify smooth gate movement on the track.
    • Choose a stable surface near the track for motor placement.
  • Position the Motor:
    • Place the DA-IZ-1200 next to the track, ensuring the motor’s drive gear aligns with the gate’s gear rack.
    • Use a level to confirm correct alignment.
  • Mount the Motor:
    • Secure the motor to the ground using mounting bolts.
    • Ensure the motor is tightly fastened and properly aligned with the gate.
  • Install the Gear Rack:
    • Attach the gear rack to the bottom of the gate, ensuring it engages smoothly with the motor’s drive gear.
  • Connect the Electrical System:
    • Wire the motor to the 240VAC power supply and connect any accessories (remote controls, sensors) as per the instructions.
  • Configure Auto-Closing:
    • Set the desired time delay for the auto-closing feature using the provided controls.
  • Test Operation:
    • Power on the system and test the gate’s opening and closing functions. Verify the electronic soft-start and manual release key functionality.
  • Final Adjustments:
    • Make any necessary adjustments to ensure smooth operation and alignment.
    • Tighten all bolts and confirm stability.
