Guide Bracket with Nylon Roller
$17.60
The Guide Bracket with Nylon Roller is a durable and efficient solution designed for sliding gates up to 50mm wide. With a high-quality stainless steel bracket and a smooth-operating nylon roller, it provides quiet, water-resistant performance for long-lasting gate alignment and support.
Features
- Gate Compatibility: Suitable for sliding gates up to 50mm wide.

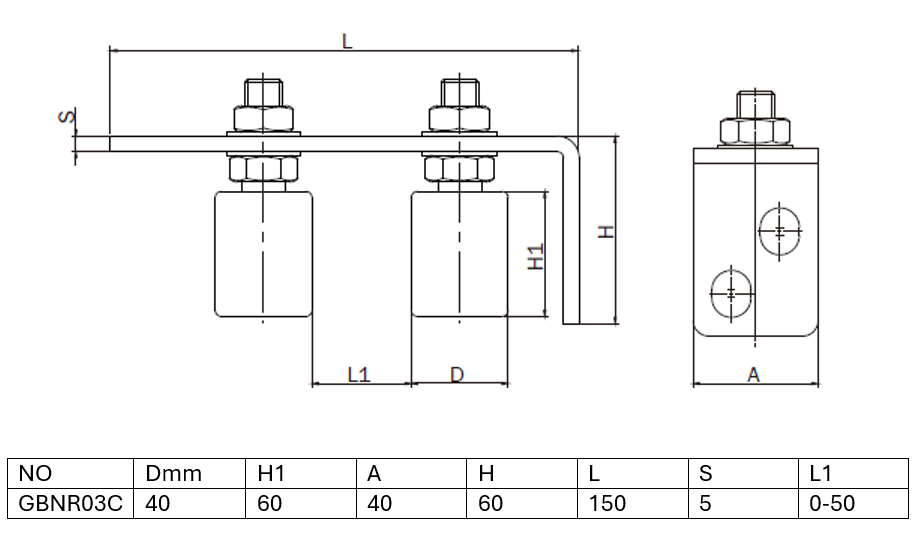

- Nylon Roller Dimensions: 40mm width x 60mm height for stable gate interaction.
- Bracket Dimensions: 150mm length, providing a strong and secure mounting option.
- High-Quality Stainless Steel Bracket: Rust-resistant for long-term durability.
- Smooth and Quiet Operation: The nylon roller offers water-resistant and smooth gate movement with minimal noise.
Warranty & Returns
Returns are accepted only for items that are faulty, non-defective items are not eligible for return.
Please contact us for more details [click here]
Installation
- Prepare the Installation Site:
- Ensure the sliding gate track is correctly installed and aligned. The gate should move smoothly along the track.
- Position the Bracket:
- Determine the ideal location to install the bracket, typically on a post or wall adjacent to the gate.
- Mount the Bracket:
- Secure the stainless steel bracket to the post or wall using appropriate mounting hardware, ensuring it is level and properly aligned with the gate.
- Align the Nylon Roller:
- Adjust the nylon roller so that it interacts horizontally with the gate, keeping it aligned as it moves along the track.
- Test the Gate Operation:
- Move the gate back and forth to ensure the roller provides smooth and quiet support without resistance.
- Make Final Adjustments:
- Tighten all mounting bolts and make any necessary adjustments to ensure proper alignment and stability.
