Garrison Fence Panel-1800 x 2400mm – Black

$165.00

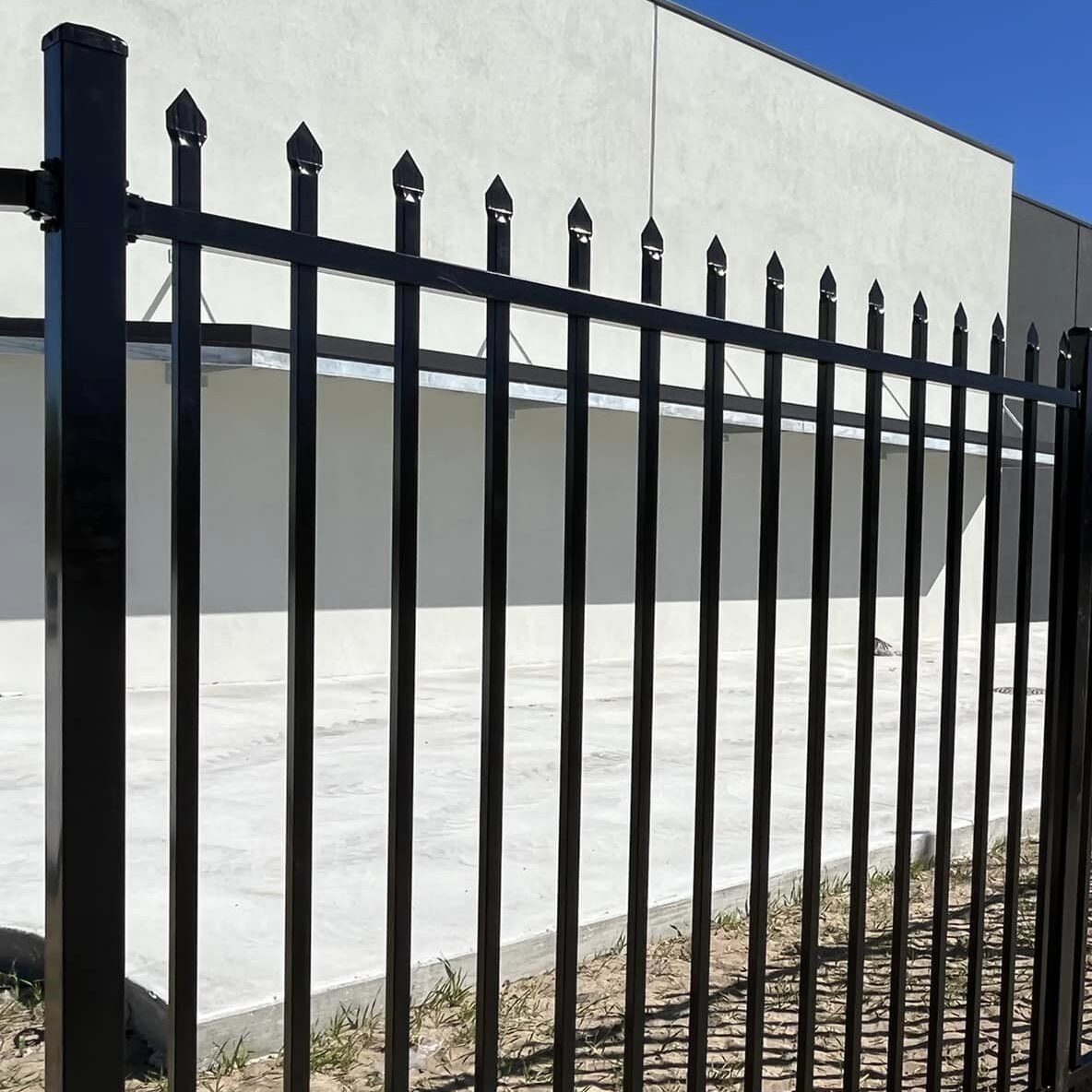

The Garrison Fence Panel, measuring 1.8m in height and 2.4m in width, is a robust and stylish solution for secure fencing. Finished in sleek black, this panel is constructed from durable, weather-resistant materials, making it ideal for both residential and commercial use. Its modern design provides high security while maintaining a polished appearance.

Features

  • Made from high-quality Galvanised Steel
  • Powder Coated Black for Corrosion resistance and professional look
  • Available in different heights
  • Post and rail brackets available for easy installation
  • 1800mm High x 2400mm Wide
  • 40x40x1.6mm Frame
  • 25x25x1.2mm Uprights at approx. 115mm spacing
  • Use with 2.7m Posts & Brackets

Warranty & Returns

Returns are accepted only for items that are faulty, non-defective items are not eligible for return.
Please contact us for more details [click here]

Installation

1. Plan and Measure:
  • Mark out where your fence panels will be placed, ensuring that the total length is correct.
  • Drive stakes into the ground at each corner, and run a string line between them to act as a guide for alignment.
  • Mark the position of the posts based on the width of the panels (2.4m between post centers).
2. Dig Post Holes:
  • Dig holes for the posts at each marked location.
  • The holes should be approximately 600-900mm deep and about three times the width of the post for stability.
3. Set the Posts:
  • Insert the posts into the holes and ensure they are aligned with the string line.
  • Use a level to make sure each post is straight.
  • Fill the hole with concrete, making sure to slant the top of the concrete to direct water away from the post.
  • Allow the concrete to cure as per the manufacturer’s instructions (usually 24-48 hours).
4. Attach the Panels:
  • Once the posts are set, attach the fence panels to the posts using brackets or clamps.
  • Make sure the panels are level and adjust accordingly before tightening the screws.
  • Depending on the type of fence, you may have to drill holes into the posts to secure the brackets.
5. Check Alignment and Finish:
  • Double-check the alignment of the panels and posts using a level.
  • Tighten all screws and make sure everything is securely in place.
6. Secure the Gates (if applicable):
  • If your fence includes a gate, install the gate posts following the same steps as the panel posts but ensuring proper spacing for the gate.
  • Attach the gate with hinges and check that it opens and closes smoothly.
