Gate Safety Sensor

$132.00

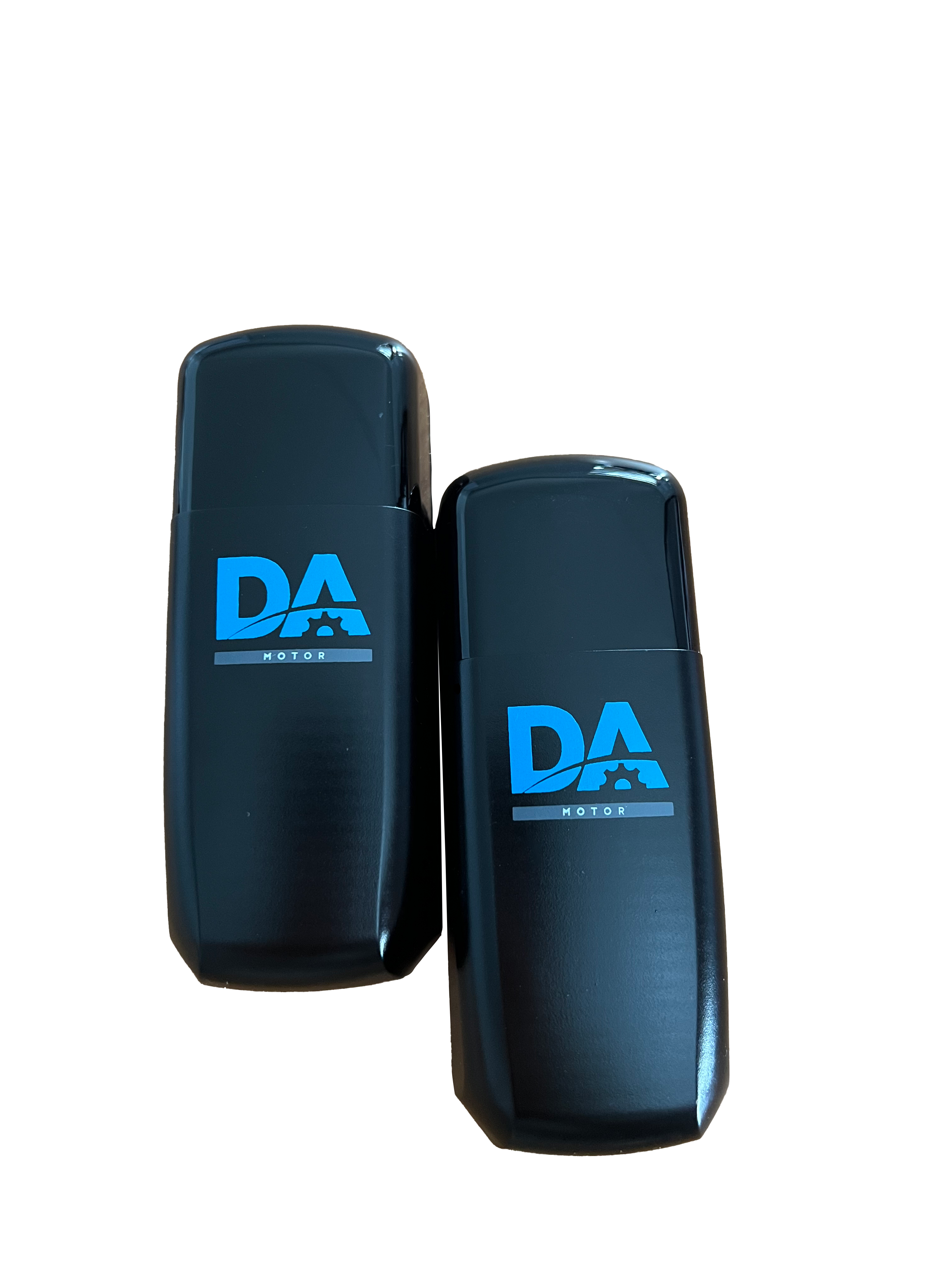

The Gate Safety Sensor is an essential safety feature for automated gates, preventing the gate from closing on objects or people. The system includes a receiver and an emitter, designed to detect any obstructions in the gate’s path. With a receiver range of 1-15 meters and a photocell wavelength of 940nm, this sensor provides reliable and accurate performance in various weather conditions. It is easy to install on a pillar or post and ensures that your gate operates safely and efficiently.

Features

  • Power Supply: Receiver operates on AC/DC 12-24V, while the emitter uses 2 x 1.5V AA alkaline batteries.
  • Photocell Wavelength: 940nm for reliable detection of obstructions.
  • Receiver Range: Effective detection range from 1 to 15 meters.
  • Wide Temperature Range: Operates in temperatures between -20°C and 55°C, suitable for various climates.
  • Waterproof Rating: IP54 waterproof grade ensures protection against dust and water splashes.
  • Compact Design: Dimensions of 128 x 50 x 32mm make it easy to install on posts or pillars.
  • Horizontal Installation: Must be installed at least 20cm above the ground, with the receiver and emitter aligned horizontally.
  • Safety Assurance: Prevents the gate from closing on objects or people, ensuring the safety of everyone in the vicinity.
  • Flexible Installation: Can be installed on either a pillar or a post, making it versatile for different setups

Warranty & Returns

We offer a 2-year warranty from the date of purchase. This warranty covers any faulty in material under normal use during the warranty period. It does not cover damage resulting from misuse, abuse, accidents, unauthorized repairs, improper installation, or normal wear and tear.
Returns are accepted only for items that are faulty. Non-defective items are not eligible for return.

Please contact us for more details [click here]

Installation

  • Determine Installation Height: Ensure the receiver and emitter are installed horizontally at least 20cm above the ground.
  • Mount the Emitter: Attach the emitter to a pillar or post on one side of the gate using screws or brackets.
  • Mount the Receiver: On the opposite side, mount the receiver at the same height, ensuring it is directly aligned with the emitter.
  • Power the Devices:
    • Connect the receiver to an AC/DC 12-24V power supply.
    • Insert two 1.5V AA alkaline batteries into the emitter.
  • Test the Sensor: Once both devices are powered, test the sensor by moving an object between the emitter and receiver to ensure the gate stops when an obstruction is detected.
  • Adjust if Necessary: Make sure the receiver and emitter are properly aligned for optimal performance and adjust the alignment if needed.
  • Final Check: Confirm the gate operates safely, stopping when anything interrupts the sensor’s beam.
