Guide Bracket with Nylon Roller

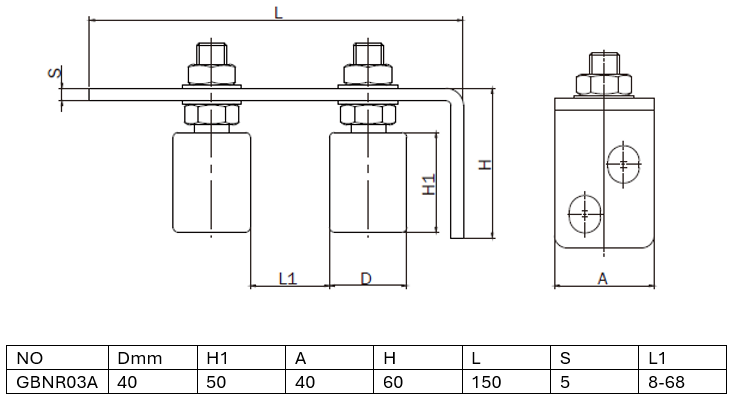

• Suitable for sliding gates that are up to 68mm wide
• Roller dimensions are 40mm width x 50mm high
• Bracket dimension 150mm length
• The bracket is made of high-quality stainless steel, preventing rust. The bracket is often on a post or wall, and the nylon roller extends horizontal in interact with the gate. The nylon material provides smooth quiet operation and is water resistant, ensuring long-lasting performance

Returns are accepted only for items that are faulty, non-defective items are not eligible for return.
Please contact us for more details [click here]

• Position the Guide Bracket:
  • Measure and mark the desired location for the guide bracket on the wall or support structure.
  • Ensure the bracket is positioned at the correct height relative to the sliding door or gate for smooth operation.
• Mark the Mounting Holes:
  • Hold the guide bracket in position and use a pencil or marker to mark the locations of the mounting holes on the wall or structure.
• Drill Holes:
  • Drill holes at the marked positions, ensuring they are the correct size for the screws or bolts you plan to use.
• Attach the Bracket:
  • Align the guide bracket with the drilled holes.
  • Secure the bracket using screws or bolts. Tighten them with a wrench or screwdriver to ensure the bracket is firmly in place.
  • Double-check that the bracket is level and properly aligned.
• Install the Nylon Roller:
  • Insert the nylon roller into the guide bracket as instructed by the manufacturer (some rollers come pre-installed).
  • Ensure the roller is secure and rotates freely.
• Test the Roller Movement:
  • Once the guide bracket and roller are installed, slide the door or gate along the roller to ensure smooth movement.
  • Make any necessary adjustments to the bracket alignment if the door or gate does not move smoothly.
