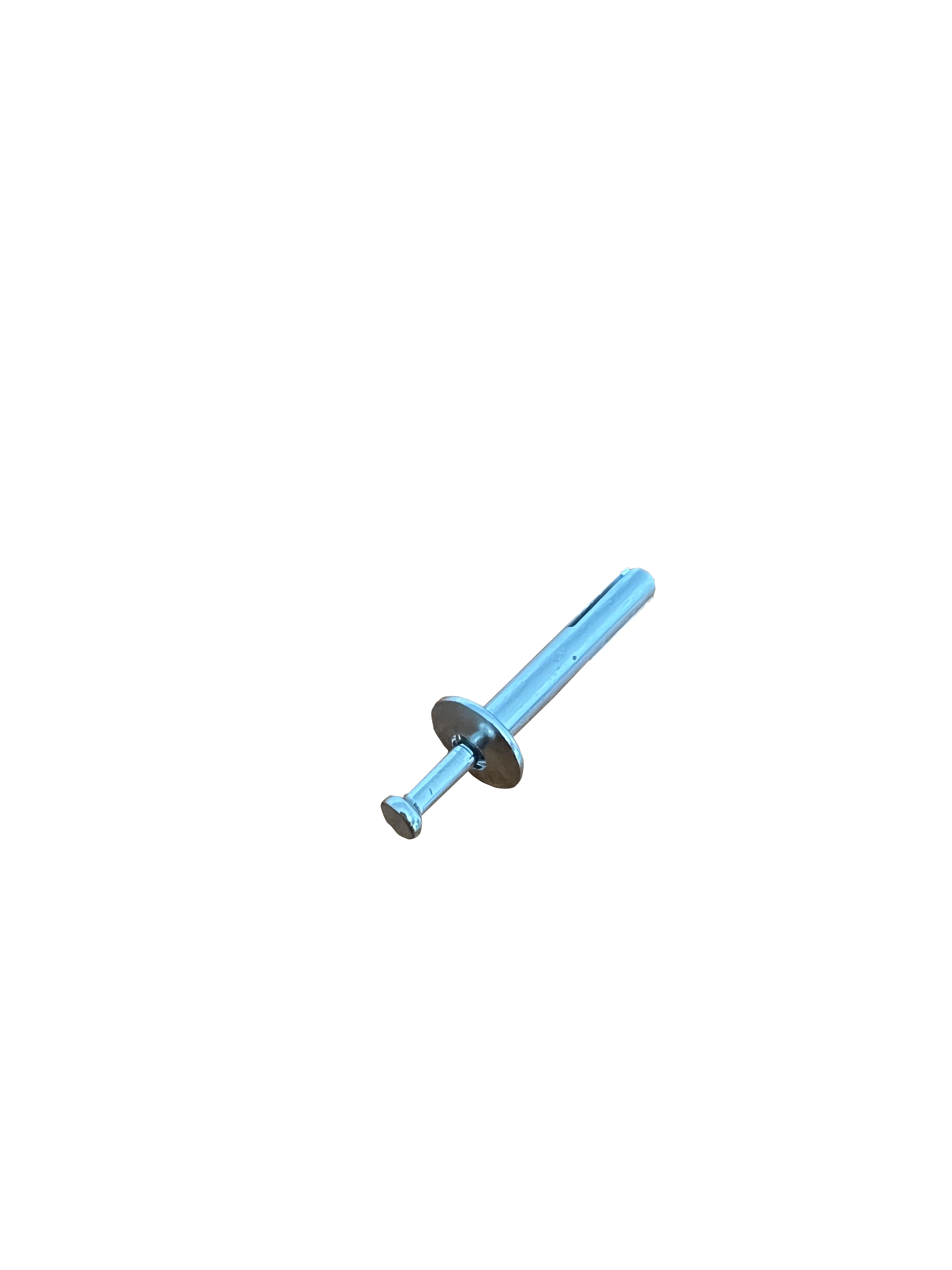

Metal Anchor

• Size: M6.5 x 38mm, designed for securing SG-G4m and SG-G6m bolt-down sliding gate tracks.
• Material: Constructed from high-strength metal, typically galvanized steel, for durability and resistance to corrosion.
• Heavy-Duty: Strong enough to secure heavy sliding gate tracks in concrete or other solid surfaces.
• Corrosion-Resistant: Galvanized coating prevents rust and ensures long-lasting performance in outdoor environments.
• Easy Installation: Designed for quick and secure fastening of sliding gate tracks to concrete surfaces.
• Versatility: Suitable for both residential and commercial sliding gate systems
• Removability: Non-removable

Returns are accepted only for items that are faulty, non-defective items are not eligible for return.
Please contact us for more details [click here]

• Mark Anchor Locations:
  • Position the sliding gate track (SG-G4m or SG-G6m) in its intended location.
  • Mark the positions where the anchors will be installed through the pre-drilled holes in the track.
• Drill Holes:
  • Using a hammer drill with a concrete bit, drill holes into the concrete at the marked locations.
  • The holes should be deep enough to accommodate the full length of the M6.5 x 38mm metal anchors.
• Clean the Holes:
  • Remove dust and debris from the drilled holes to ensure a secure fit for the anchors.
• Insert Metal Anchors:
  • Place the metal anchors into the drilled holes. You may need to lightly tap them with a hammer to ensure they are fully inserted and flush with the surface.
• Position the Gate Track:
  • Align the sliding gate track over the installed metal anchors.
  • Ensure the track is correctly positioned and level.
• Secure the Gate Track:
  • Place the bolts through the track’s pre-drilled holes and into the metal anchors.
  • Use a wrench or socket driver to tighten the bolts, securing the gate track to the concrete surface.
• Final Check:
  • Once the track is bolted down, check that it is securely fastened and aligned properly for smooth gate operation.
