Roller Guide with Bracket
$30.80
The Roller Guide with Bracket is designed for sliding gates up to 77mm wide, offering smooth and quiet gate movement. Made from high-quality stainless steel with a nylon roller, it provides rust resistance, durability, and reliable performance in outdoor environments.
Features
- Gate Compatibility:
- Suitable for sliding gates up to 77mm wide, providing versatile use across a range of gate sizes.

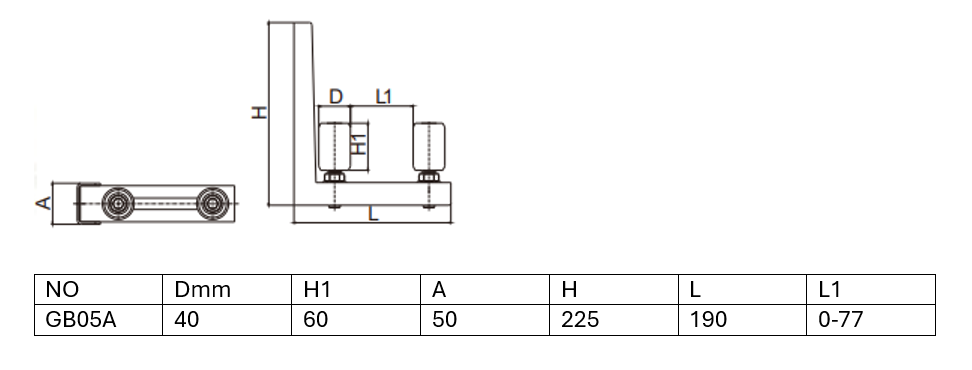

- Roller Dimensions (40mm Width x 60mm Height):
- The roller is designed to guide the gate smoothly, ensuring stable and controlled movement along the track.
- Bracket Dimensions (225mm Height):
- A sturdy bracket that provides reliable support when mounted to a post or wall, holding the roller in place for effective gate operation.
- High-Quality Stainless Steel Construction:
- The bracket is made from durable stainless steel, ensuring resistance to rust and corrosion for long-lasting outdoor performance.
- Nylon Roller:
- The roller is made of high-quality nylon, offering smooth and quiet gate operation while being water-resistant and durable enough to withstand frequent use.
- Easy Installation:
- Designed for straightforward installation on posts or walls, ensuring minimal setup time while delivering reliable gate support.
Warranty & Returns
Returns are accepted only for items that are faulty, non-defective items are not eligible for return.
Please contact us for more details [click here]
Installation
- Determine the Installation Position:
- Identify where the roller guide bracket will be installed, ensuring it aligns with the path of the sliding gate and provides adequate support.
- Mark Mounting Points:
- Hold the bracket against the post or wall and mark the spots where holes need to be drilled for securing the bracket.
- Drill Holes:
- Using the appropriate drill bit, create holes at the marked points for the mounting hardware.
- Secure the Bracket:
- Attach the bracket to the post or wall using screws or bolts, ensuring it is tightly secured and properly aligned.
- Test Roller and Gate Alignment:
- Once the bracket is installed, ensure that the roller is positioned to interact correctly with the gate. The gate should glide smoothly against the roller without resistance.
- Adjust if Necessary:
- Make any final adjustments to the alignment of the roller or bracket to ensure optimal performance and smooth operation of the gate.
